Rear Side
- Disconnect the negative battery cable.
- Remove the following parts:
- Side door garnish (See SIDE DOOR GARNISH REMOVAL/INSTALLATION .)
- Rear side trim (See REAR SIDE TRIM REMOVAL/INSTALLATION .)
- Sliding door trim (See SLIDING DOOR TRIM REMOVAL/INSTALLATION .)
- Rear power window motor (See POWER WINDOW MOTOR REMOVAL/INSTALLATION .)

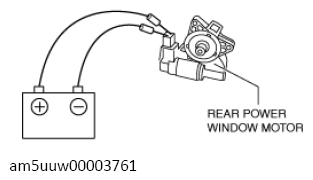

- Apply battery positive voltage and connect the ground to the rear power window motor terminals, and then inspect the rear power window motor operation.
- If not as indicated in the table, replace the rear power window motor. (See POWER WINDOW MOTOR REMOVAL/INSTALLATION .)
| Operation | Terminal | |
|---|---|---|
| E | F | |
| Open | B+ | Ground |
| Close | Ground | B+ |
