Rearview Mirror Removal

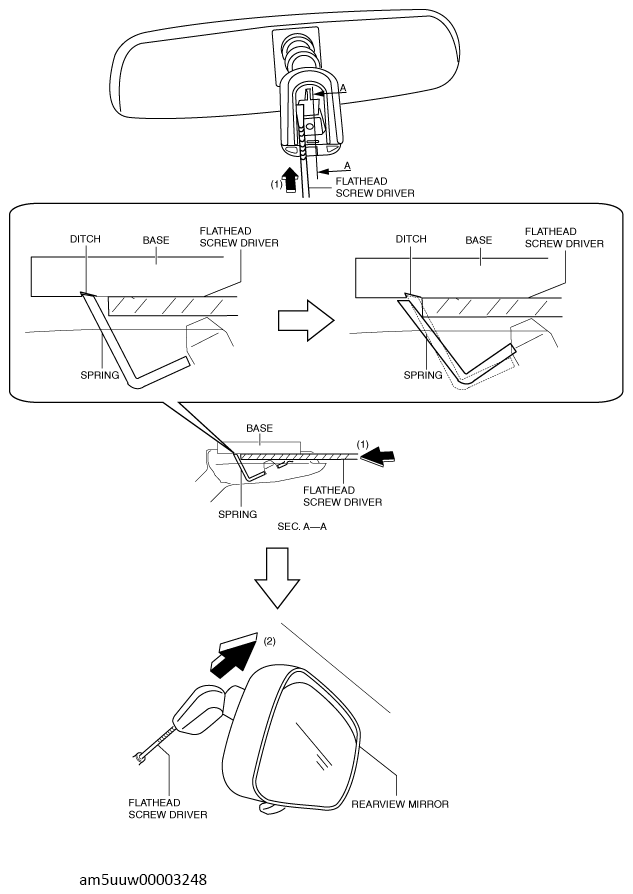

  1. Insert a tape-wrapped flathead screwdriver into the position shown in the figure, press the center part of the spring (1), and pull out the rearview mirror in the direction of the arrow (2) while detaching the spring.
G13728018Courtesy of MAZDA MOTORS CORP.
CAUTION:
  • Hold the rearview mirror with your hands and be careful not to allow it come into contact with the headliner. When removing the rearview mirror, it may hit the headliner and cause a damage.
