Sliding Door Glass Removal/Installation

  1. Fully open the sliding door glass.
  2. Disconnect the negative battery cable.
  3. Remove the following parts:
    1. Side door garnish (See SIDE DOOR GARNISH REMOVAL/INSTALLATION .)
    2. Rear side trim (See REAR SIDE TRIM REMOVAL/INSTALLATION .)
    3. Sliding door trim (See SLIDING DOOR TRIM REMOVAL/INSTALLATION .)
    4. Sliding door quarter glass (See SLIDING DOOR QUARTER GLASS REMOVAL/INSTALLATION .)
  4. Connect the power window subswitch connector.
  5. Connect the negative battery cable.

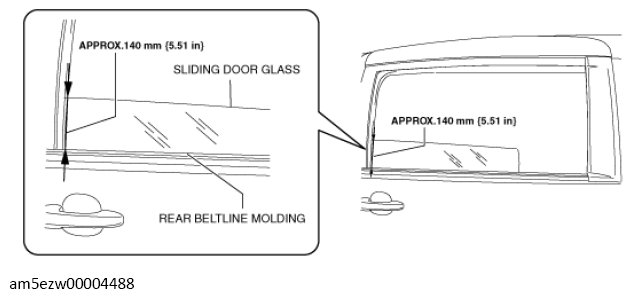

  6. Adjust the door glass position as shown in the figure.
    G13728019Courtesy of MAZDA MOTORS CORP.
  7. Disconnect the negative battery cable.

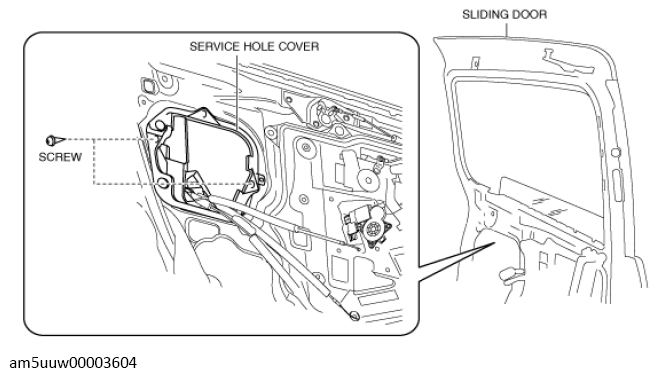

  8. Remove the screws.
    G13728020Courtesy of MAZDA MOTORS CORP.

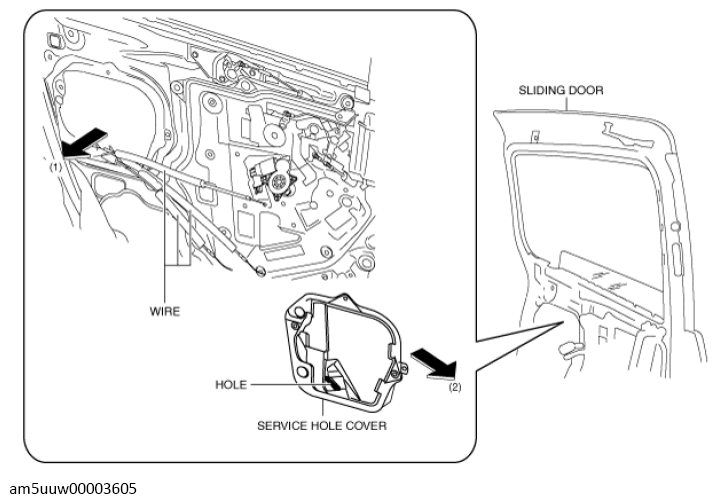

  9. Remove the service hole cover in the direction of the arrow (1), then remove the service hole cover in the direction of the arrow (2) while avoiding the wires.
    G13728021Courtesy of MAZDA MOTORS CORP.

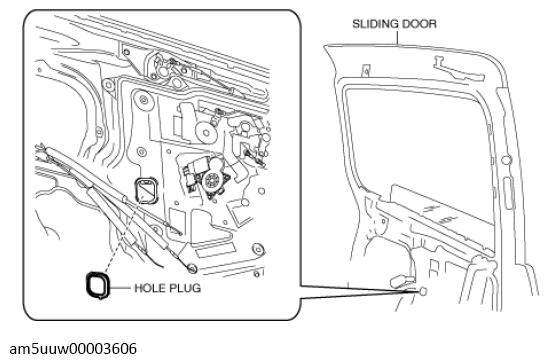

  10. Remove the hole plug.
    G13728022Courtesy of MAZDA MOTORS CORP.
    G13728023Courtesy of MAZDA MOTORS CORP.

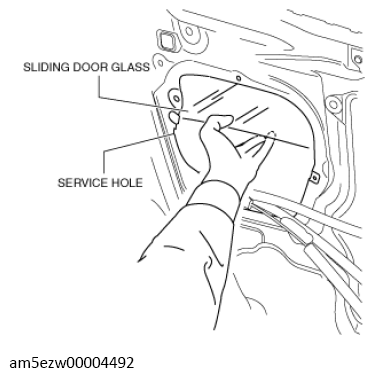

    CAUTION:
    • If the bolts are removed without supporting the sliding door glass, the glass may fall off. Insert a hand through the service hole and lower the sliding door glass to the bottommost position while supporting the glass with your hand.

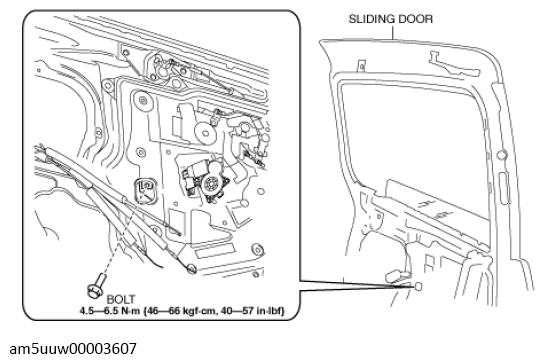

  11. Remove the bolt.
    Fig 1: Sliding Door, Hole Plug And Bolt With Torque Specification
    G13728024Courtesy of MAZDA MOTORS CORP.

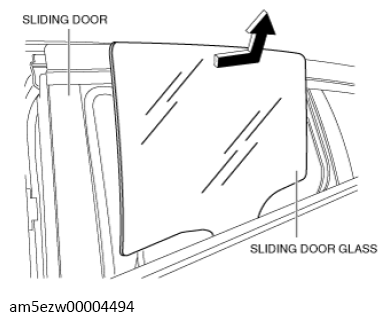

  12. Remove the sliding door glass in the direction of the arrow as shown in the figure.
    G13728025Courtesy of MAZDA MOTORS CORP.
  13. Install in the reverse order of removal.
