Windshield Removal: Notes

  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
    2. Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION .)
    3. Cowl panel (See COWL PANEL REMOVAL/INSTALLATION .)
    4. Rain sensor (See RAIN SENSOR REMOVAL/INSTALLATION .)
    5. Rearview mirror (See REARVIEW MIRROR REMOVAL .)
    6. Sunvisor (See SUNVISOR REMOVAL/INSTALLATION .)
    7. Map light (See MAP LIGHT REMOVAL/INSTALLATION .)
    8. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
    9. Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION .)
  3. Set the headliner out of the way.

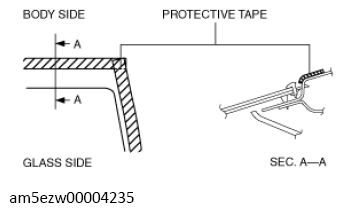

  4. Apply protective tape along the edge of the body.
    G13728038Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • Overlap and adhere the protective tape to the corners to prevent damage.
  5. Remove the windshield molding by pulling it outward.
    NOTE:
    • If the windshield molding is difficult to remove, warm the windshield molding using a hot air blower.
    • The windshield molding is a replacement part.
