Battery Clamp Installation Note

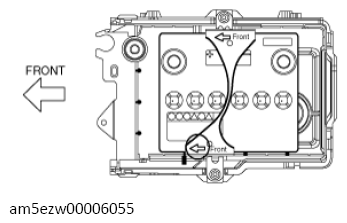

  1. Assemble the battery clamp so that the arrow on it is pointed toward the front of the vehicle.
G13726812Courtesy of MAZDA MOTORS CORP.
