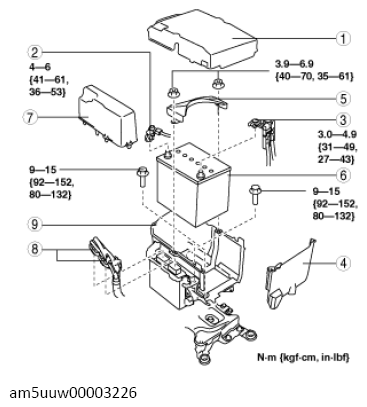

Battery Removal/Installation: Notes
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
PART DESCRIPTION
| 1 | Battery cover (See BATTERY COVER REMOVAL NOTE .) (See BATTERY COVER INSTALLATION NOTE .) |
| 2 | Negative battery cable |
| 3 | Positive battery cable |
| 4 | Battery box (See BATTERY BOX INSTALLATION NOTE .) |
| 5 | Battery clamp (See BATTERY CLAMP INSTALLATION NOTE .) |
| 6 | Battery (See BATTERY INSTALLATION NOTE .) |
| 7 | PCM cover No. 1 (See PCM COVER NO. 1 INSTALLATION NOTE .) |
| 8 | PCM connectors |
| 9 | Battery tray and PCM component |
