PCM Cover No. 1 Installation Note

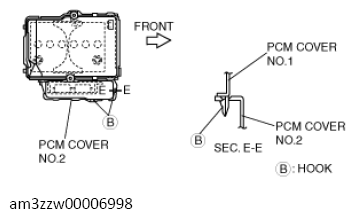

  1. Install with PCM cover No. 1 hooks B aligned with the PCM cover No. 2 holes at two points.
    G13726810Courtesy of MAZDA MOTORS CORP.

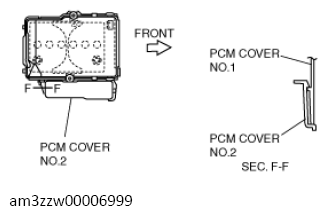

  2. Install the PCM cover No. 1 to the PCM cover No. 2 hook.
G13726811Courtesy of MAZDA MOTORS CORP.
