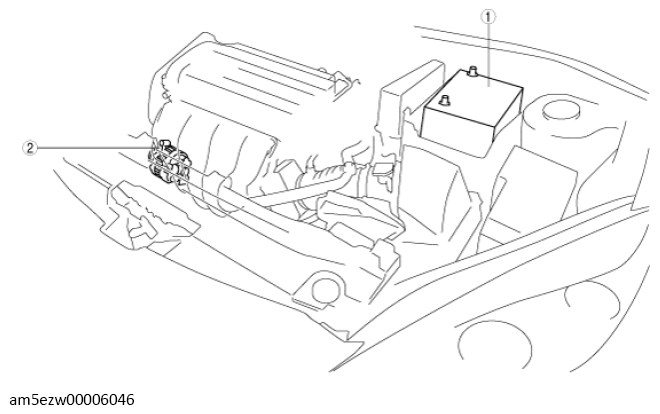

Charging System Location Index

Courtesy of MAZDA MOTORS CORP.

PART DESCRIPTION

1	Battery (See BATTERY REMOVAL/INSTALLATION .) (See BATTERY INSPECTION .) (See BATTERY RECHARGING .)
2	Generator (See GENERATOR REMOVAL/INSTALLATION .) (See GENERATOR INSPECTION .) (See GENERATOR DISASSEMBLY/ASSEMBLY .)
