Generator Inner Parts: Rotor

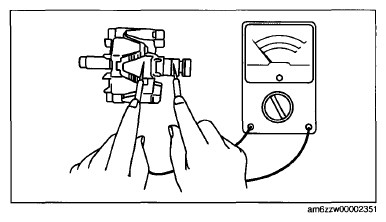

Measure the resistance between the slip rings using a tester.

Courtesy of MAZDA MOTORS CORP.
- If not within specification, replace the rotor.
  Generator rotor resistance (between slip rings) [20°C {68°F}]

  1.8-2.2 ohms

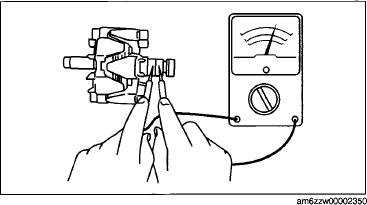

Verify that there is no continuity between the slip ring and core using a tester.

Courtesy of MAZDA MOTORS CORP.
- If there is continuity, replace the rotor.
Inspect the slip ring surface condition.
- If the slip ring surface is rough, use a lathe or fine sandpaper to make it smooth.
