Generator and Generator Heat Insulator Removal Note

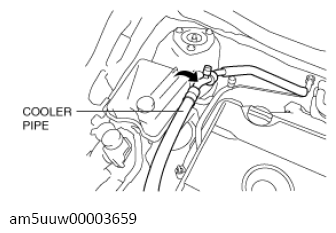

1. Set the cooler pipe out of the way. (See REFRIGERANT LINE REMOVAL/INSTALLATION .)

   Courtesy of MAZDA MOTORS CORP.

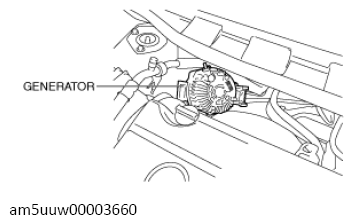

2. Remove the generator and generator heat insulator together from the engine, and position them in the engine compartment in a location where no part can be damaged.
3. Remove the generator heat insulator from the generator.
4. Remove the generator from above the engine compartment.

Courtesy of MAZDA MOTORS CORP.
