Crankshaft Position (CKP) Sensor Removal/Installation: Removal

1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION .)
2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION .)
3. Remove the aerodynamic under cover and splash shield (RH) as a single unit. (See AERODYNAMIC UNDER COVER REMOVAL/INSTALLATION .) (See SPLASH SHIELD REMOVAL/INSTALLATION .)
4. Disconnect the CKP sensor connector.

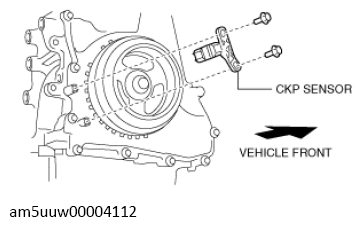

5. Remove the CKP sensor.

Courtesy of MAZDA MOTORS CORP.
