Fuel Pump Unit Disassembly/Assembly
- Remove the fuel pump unit. (See FUEL PUMP UNIT REMOVAL/INSTALLATION .)
- Disassemble in the order indicated in the table.
- Assemble in the reverse order of disassembly.

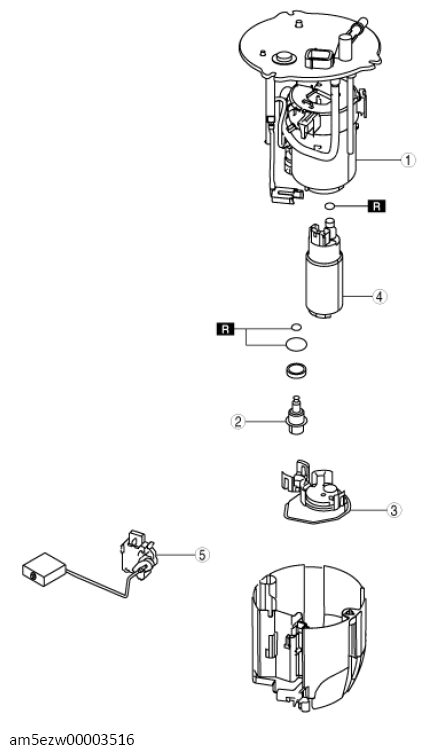

PART DESCRIPTION
| 1 | Fuel filter (high-pressure) |
| 2 | Pressure regulator |
| 3 | Fuel filter (low-pressure) |
| 4 | Fuel pump |
| 5 | Fuel gauge sender unit |
