Joint Hose Installation Note

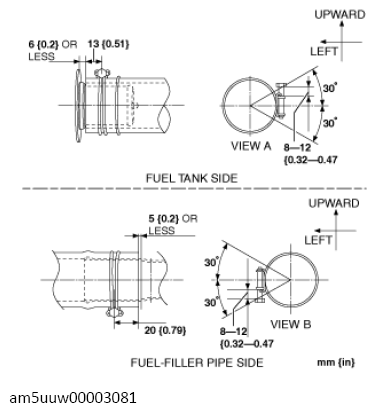

Install the joint hose as shown in the figure.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
