No. 1 Blown Fuses

BLOWN FUSES SPECIFICATION

1 BLOWN FUSES
[TROUBLESHOOTING HINTS]

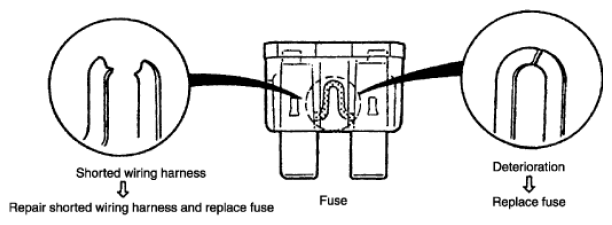

  • Inspect condition of fuse.
G13726508Courtesy of MAZDA MOTORS CORP.
Damaged Fuse Related Wiring Harness
EGI MAIN
  • EGI MAIN fuse
    • Main relay
ENG INJ
  • ENG INJ fuse
    • PCM
ENG BAR
  • ENG BAR fuse
  • MAF/IAT sensor
  • EGR valve
  • Purge solenoid valve
  • Variable tumble solenoid valve
  • Variable intake air solenoid valve
  • A/F sensor
    • CV solenoid valve
ROOM
  • ROOM fuse
    • DLC-2
FAN1
  • FAN1 fuse
    • Cooling fan motor No. 1
AD FAN
  • AD FAN fuse
    • Cooling fan relay No. 3
ENG +B
  • ENG +B fuse
  • Cooling fan relay No. 2
  • Cooling fan relay No. 3
    • PCM
ENG2
  • ENG2 fuse
  • Fuel pump relay
  • HO2S
    • PCM
ENG3
  • ENG3 fuse
  • Ignition coil No. 1
  • Ignition coil No. 2
  • Ignition coil No. 3
    • Ignition coil No. 4
FUEL PUMP
  • FUEL PUMP fuse
    • Fuel pump relay
MAIN ST
  • MAIN ST fuse
  • Generator
    • Starter
STARTER
  • STARTER fuse
  • Starter relay
    • Generator
IG KEY2
  • IG KEY2 fuse
    • Starter relay
