Bulb Removal/Installation

  1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION .)
  2. Disconnect the negative battery cable.
  3. Remove the center console box. (See CENTER CONSOLE BOX REMOVAL/INSTALLATION .)
  4. Remove the console panel. (See CONSOLE PANEL REMOVAL/INSTALLATION .)
  5. Remove the selector lever knob. (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION .)
  6. Remove the shift panel. (See SHIFT PANEL REMOVAL/INSTALLATION .)

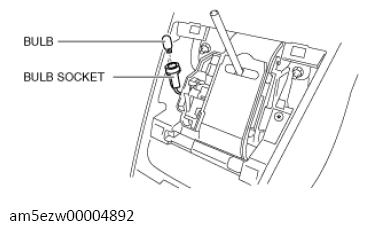

  7. Remove the bulb from the bulb socket.
    G13727547Courtesy of MAZDA MOTORS CORP.
  8. Install in the reverse order of removal.
