Selector Cable Installation Note

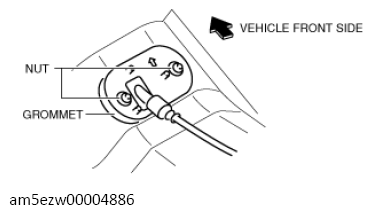

- Install the grommet to the position shown in the figure.
Tightening torque
6.9-9.8 N.m {71-99 kgf.cm, 62-86 in.lbf}
- Securely install the cable outer side (selector lever side) to the selector lever.

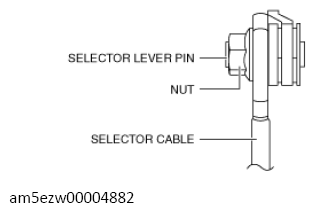

- Install the selector cable end (selector lever side) to the selector lever pin, and temporarily tighten the nut.

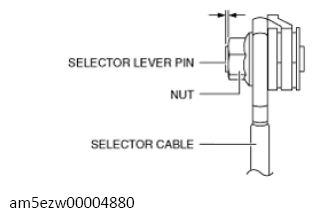

- Verify that the selector lever pin end is out of the nut.

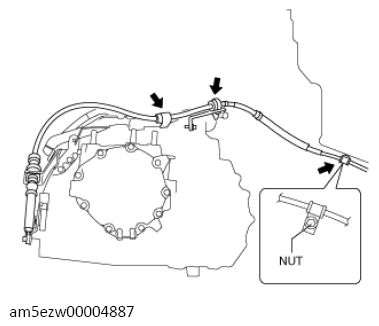

- Install the clip shown in the figure and tighten the nut.
Tightening torque
19-25 N.m {2.0-2.5 kgf.m, 15-18 ft.lbf}
- Verify that the selector lever is in the P position.

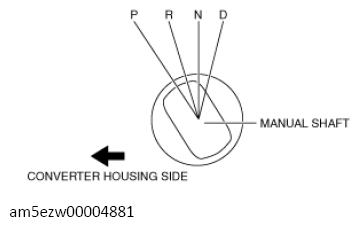

- Verify that the manual shaft is in the P position.
- Install the selector cable end (transaxle side) and cable outer side (transaxle side).CAUTION:
- Make sure that the selector cable is not twisted when installing it to the boot.
- Install the selector cable straight. If the selector cable is installed twisted as shown in the figure, the installation will be incorrect.

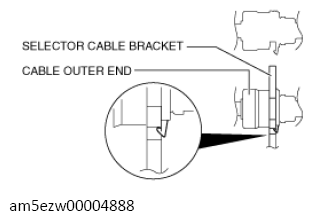

- Install the cable outer side (transaxle side) to the selector cable bracket.

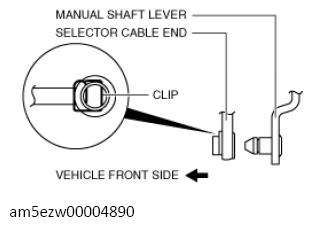

- Install the clip to the selector cable end (transaxle side) as shown in the figure.
NOTE:- Point the clip side of the selector cable end (transaxle side) to the vehicle front and install the selector cable to the manual shaft lever.
- Verify that the manual shaft lever end is out of the selector cable end.
- Verify that the selector cable is securely installed.
- Completely tighten the nut of the selector cable (selector lever side) end. At this time, do not touch the selector lever component rod.CAUTION:
- If the nut is tightened with the selector lever component rod loaded, it could cause a selector cable adjustment malfunction.
Tightening torque
10-15 N.m {102-152 kgf.cm, 89-132 in.lbf}
