Shift-Lock Release System Inspection

Switch the ignition OFF (LOCK).
Verify that the selector lever is in the P position.
Verify that the selector lever cannot be shifted to the R from P position when the brake pedal is not depressed.

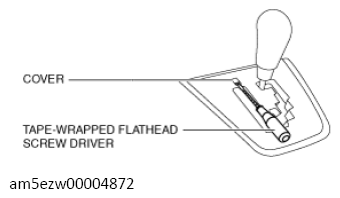

Remove the shift-lock release hole cover using a tape-wrapped flathead screwdriver.

Courtesy of MAZDA MOTORS CORP.
Insert flathead screwdriver into the shift-lock release hole.
Verify that the selector lever can be shifted to the R from P position.
- If there is any malfunction, replace the selector lever component. (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
