Battery Cover Installation Note

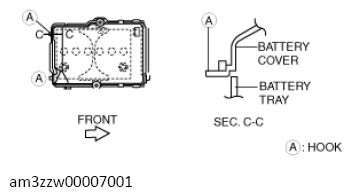

Install with battery cover hooks A aligned with the battery tray holes at two points.

Courtesy of MAZDA MOTORS CORP.

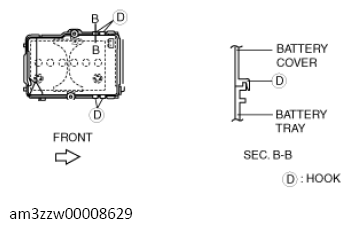

Install with battery cover hooks D aligned with the battery tray flange at four points.

Courtesy of MAZDA MOTORS CORP.

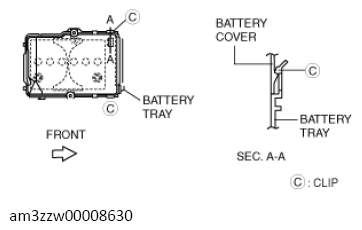

Set the battery cover to battery tray hooks C at two points.

G13726816
