Engine Coolant Temperature (ECT) Sensor Removal/Installation

WARNING:

When the engine is hot, it can badly burn. Turn off the engine and wait until it is cool before removing the ECT sensor.

Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION .)
Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION .)
Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT .)
Disconnect the ECT sensor connector.
Remove the ECT sensor using the SST.

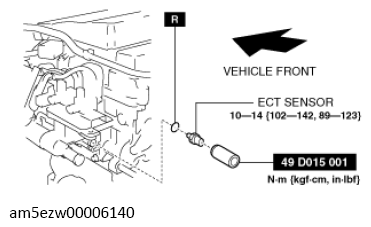

Fig 1: Engine Coolant Temperature Sensor With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
Refill the engine coolant. (See ENGINE COOLANT REPLACEMENT .)
