Ignition System Location Index

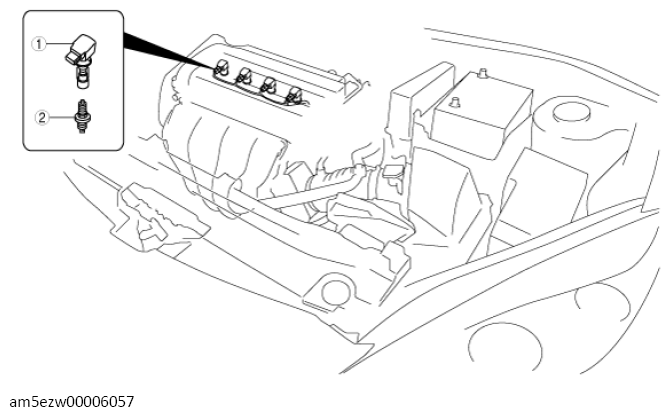

G13726835Courtesy of MAZDA MOTORS CORP.
PART DESCRIPTION

1 Ignition coil
(See IGNITION COIL REMOVAL/INSTALLATION .)
(See IGNITION COIL INSPECTION .)
2 Spark plug
(See SPARK PLUG REMOVAL/INSTALLATION .)
(See SPARK PLUG INSPECTION .)
