Front Door Glass Removal/Installation: Notes

  1. Perform the front door glass preparation. (See FRONT DOOR GLASS PREPARATION .)
    NOTE:
    • Before removing the front door glass, the removal procedure for the front door glass installation bolt can be facilitated by adjusting the top of the front door glass to the position approx. 90 mm {3.5 in} away from the upper part of the front beltline molding.
  2. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  3. Remove the following parts:
    1. Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION .)
    2. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
    3. Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION .)
  4. Press the center of the service hole cover in the direction of arrow (1) shown in the figure.

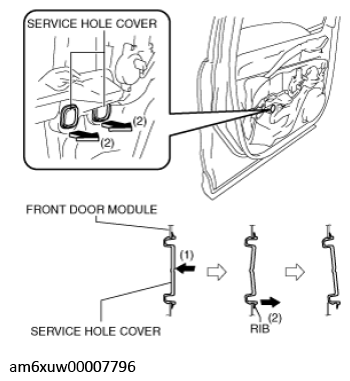

    Fig 1: Pressing Center Of Service Hole Cover
    G11544278Courtesy of MAZDA MOTORS CORP.
  5. Remove the service hole cover by holding its rib and partially peeling it back in the direction of arrow (2) shown in the figure.
  6. Verify that the front door glass installation bolts are in a position in which they can be removed from the service hole.
    CAUTION:
    • If the bolts are removed without supporting the front door glass, the front door glass may fall off and be damaged. Remove the bolts while inserting your hand into the front door speaker installation hole to support the front door glass.
    NOTE:
    • If the front door glass installation bolts are not in a position in which they can be removed from the service hole, remove the front power window motor. (See POWER WINDOW MOTOR REMOVAL/INSTALLATION .)
  7. Remove the bolt.
    CAUTION:
    • If the bolts are removed without supporting the front door glass, the front door glass may fall off and be damaged. Remove the bolts while inserting your hand into the front door speaker installation hole to support the front door glass.

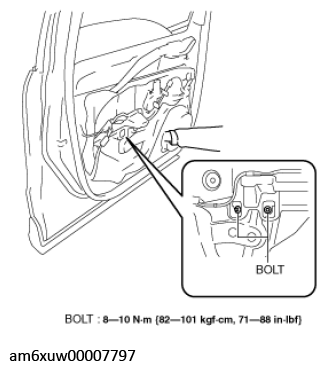

    Fig 2: Front Door Glass Bolts Location
    G11544279Courtesy of MAZDA MOTORS CORP.
  8. Lift up the front door glass, tilt it in the direction of arrow (1) shown in the figure, then remove it in the direction of arrow (2).

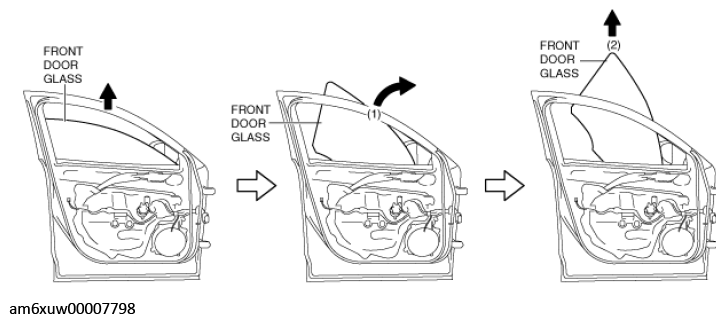

    Fig 3: Removing Front Door Glass Out
    G11544280Courtesy of MAZDA MOTORS CORP.
  9. Install in the reverse order of removal.
