BSM Warning Light
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
- Remove the outer mirror glass. (See OUTER MIRROR GLASS REMOVAL .) (See OUTER MIRROR GLASS INSTALLATION .)

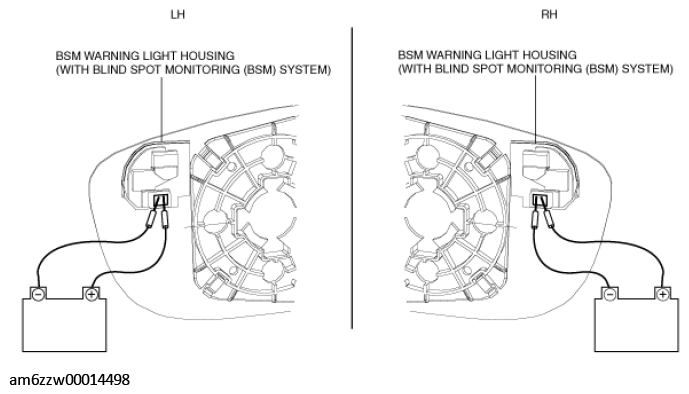

- Connect the battery voltage as shown in the figure.
Courtesy of MAZDA MOTORS CORP.
- If the BSM warning light does not illuminate, replace the outer mirror glass. (See OUTER MIRROR GLASS REMOVAL .) (See OUTER MIRROR GLASS INSTALLATION .)
