Rear Power Window Motor
- Fully lower the rear door glass.
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION
.)
- Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION
.)

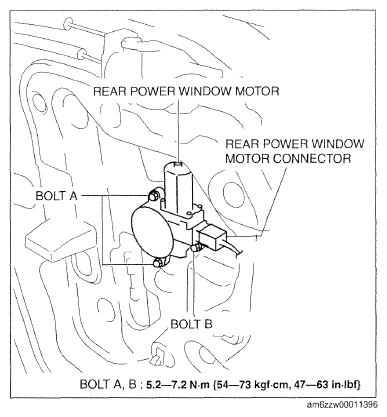

- Disconnect the rear power window motor connector.
Courtesy of MAZDA MOTORS CORP.
- Remove bolts A.
- Remove bolt B.
- Remove the rear power window motor.
- Install in the reverse order of removal.
NOTE:
- When installing the power window motor to the power window regulator drum, the drum housing tab may come off the door unit. If this happens, remove the door speaker, insert your hand in the speaker installation hole, connect the drum housing tabs, and while supporting the drum housing, install the power window motor to the drum.
