Rear Door Quarter Glass Removal/Installation: Notes

Fully lower the rear door glass.
Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION .)

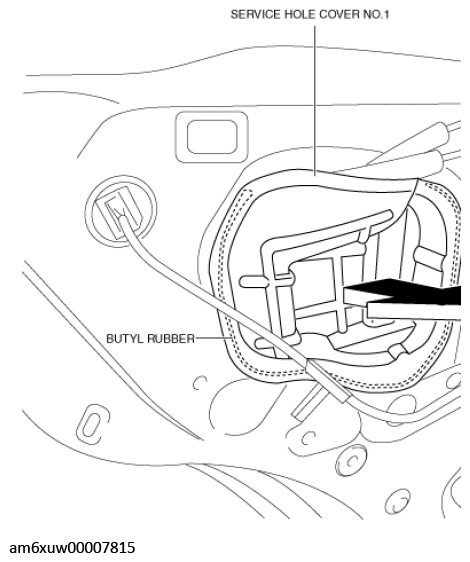

Remove the service hole cover No. 1 arrow shown in the figure.
CAUTION:
- When removing service hole cover No. 1, remove it while gradually stripping the buty l rubber. Otherwise service hole cover No. 1 may be deformed.
Fig 1: Removing Service Hole Cover No 1
Courtesy of MAZDA MOTORS CORP.

Fig 2: Removing Service Hole Cover No 2
Courtesy of MAZDA MOTORS CORP.

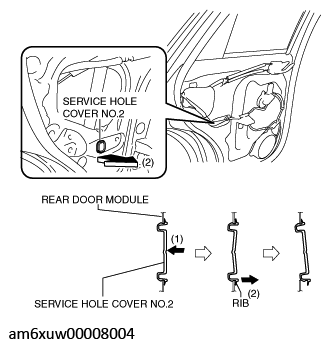

Remove the service hole cover No. 2 arrow in the order of (1), (2) shown in the figure.

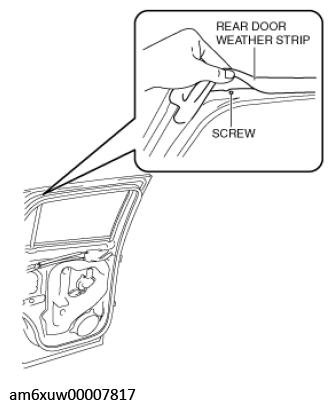

Partially peel back rear door weather strip.

Fig 3: Partially Peeling Back Rear Door Weather Strip
Courtesy of MAZDA MOTORS CORP.
Remove screw.

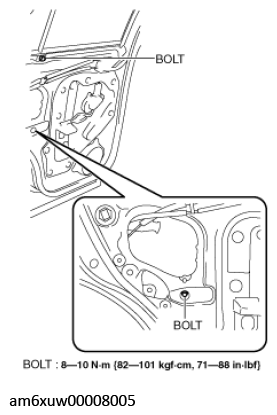

Remove bolts.

Fig 4: Power Window Bolts
Courtesy of MAZDA MOTORS CORP.

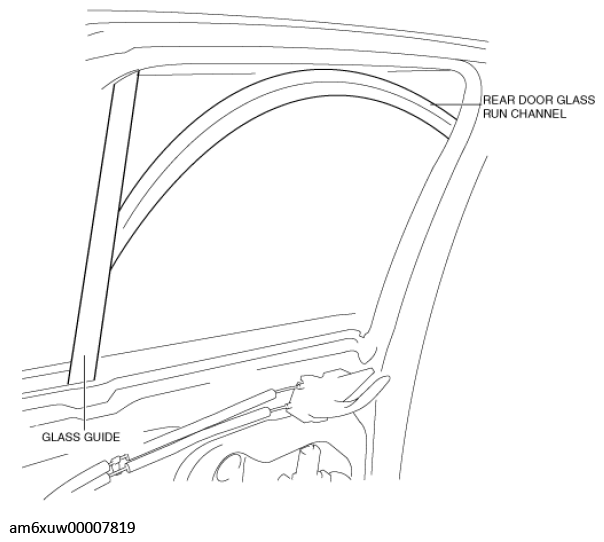

Partially peel back the rear door glass run channel.

Fig 5: Partially Peeling Back Rear Door Glass Run Channel
Courtesy of MAZDA MOTORS CORP.

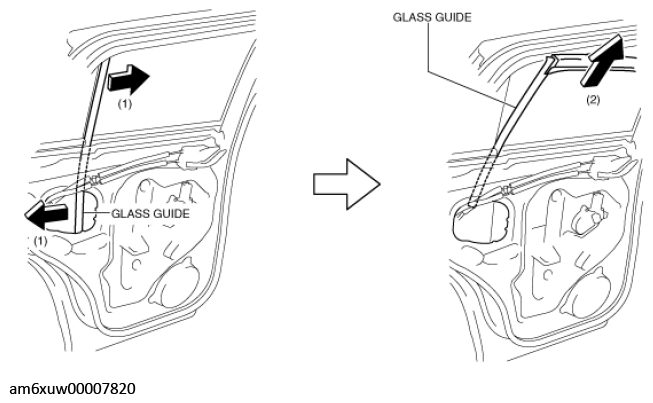

Pull the glass guide in the direction of the arrow (1) shown in the figure, then remove the glass guide direction of the arrow (2) shown in the figure. (See REAR DOOR GLASS RUN CHANNEL INSTALLATION NOTE .) (See GLASS GUIDE INSTALLATION NOTE .)

Fig 6: Removing Glass Guide
Courtesy of MAZDA MOTORS CORP.

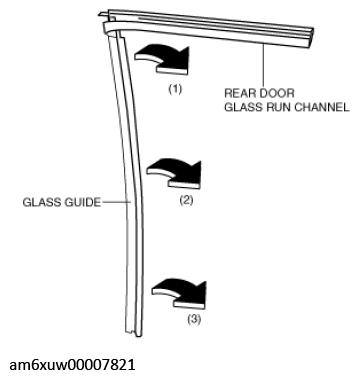

Pull the rear door glass run channel in the direction of the arrow in the order of (1),(2),(3) then remove the rear door glass run channel.

Fig 7: Removing Rear Door Glass Run Channel
Courtesy of MAZDA MOTORS CORP.

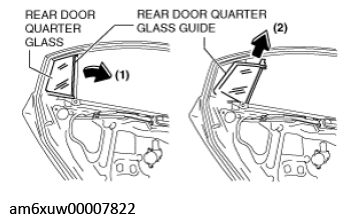

Slide the rear door quarter glass and rear door quarter glass guide as a single unit in the direction of the arrow (1) shown in the figure.

Fig 8: Sliding Rear Door Quarter Glass And Rear Door Quarter Glass Guide Single Unit
Courtesy of MAZDA MOTORS CORP.
Remove the rear door quarter glass and rear door quarter glass guide as a single unit in the direction of the arrow (2) shown in the figure.
Pull the rear door quarter glass guide in the direction of the arrow and remove the rear door quarter glass.

Fig 9: Removing Rear Door Quarter Glass
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
