Sensor Cover Removal/Installation

Pull cover A in the direction of the arrow shown in the figure and detach tab A of cover A and cover B.

Fig 1: Detaching Tab A Of Cover A And Cover B
Courtesy of MAZDA MOTORS CORP.
Pull cover A in the direction of the arrow shown in the figure, detach the tab B and pin A for cover A and the base, and remove cover A from the base.
Remove the wiring harness from the hook.

Fig 2: Removing Wiring Harness From Hook
Courtesy of MAZDA MOTORS CORP.

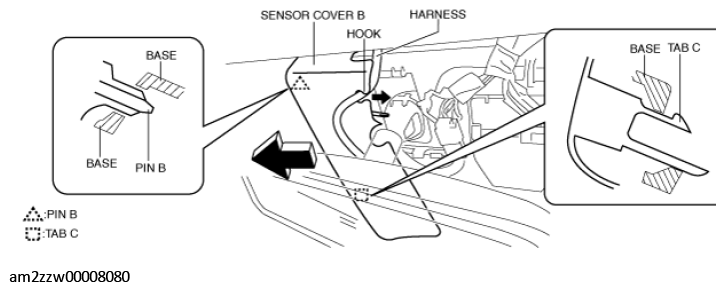

Pull cover B in the direction of the arrow shown in the figure, detach the tab C and pin B for cover B and the base, and remove cover B from the base.
Install in the reverse order of removal.
