Continuity Inspection
- Verify that the CPP switch is installed properly. (See CLUTCH PEDAL POSITION SWITCH REMOVAL/INSTALLATION .)
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
- Disconnect the CPP switch connector.

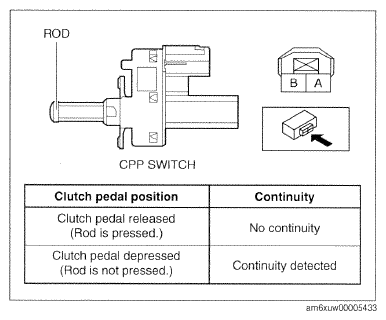

- Verify that the continuity between CPP switch terminals A and B when the clutch pedal is depressed and when it is released is according to the following table:CLUTCH PEDAL CONTINUITY
Clutch pedal position Continuity Clutch pedal released (Rod is pressed.) No continuity Clutch pedal depressed (Rod is pressed.) Continuity detected - If not as verified, replace the CPP switch. (See CLUTCH PEDAL POSITION SWITCH REMOVAL/INSTALLATION .)
