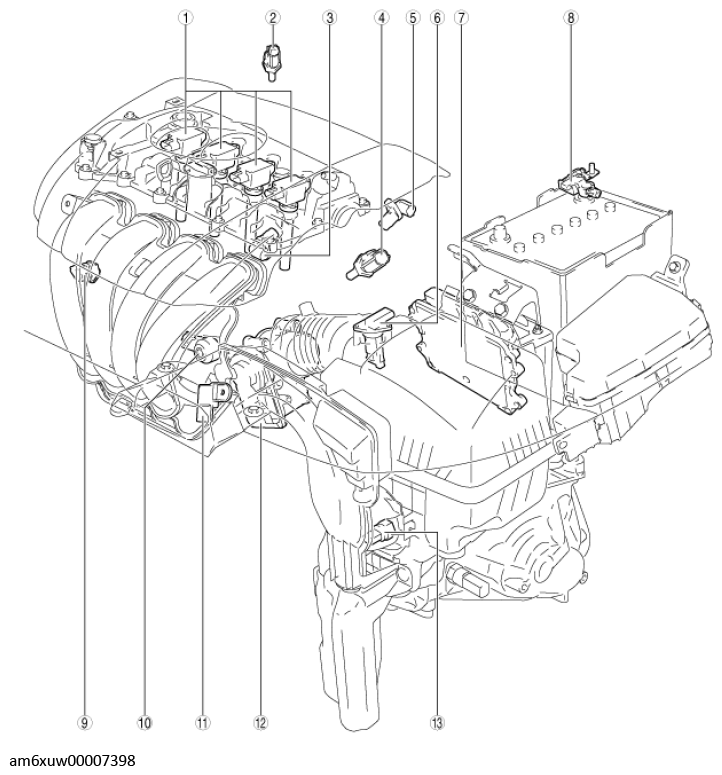

| 1 |
Ion sensor
(See
ION SENSOR REMOVAL/INSTALLATION .)
(See
ION SENSOR INSPECTION .) |
| 2 |
ECT sensor No. 2 (U.S.A. and CANADA)
(See
ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION .)
(See
ENGINE COOLANT TEMPERATURE (ECT) SENSOR INSPECTION .) |
| 3 |
Intake CMP sensor
(See
CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION .)
(See
CAMSHAFT POSITION (CMP) SENSOR INSPECTION .) |
| 4 |
ECT sensor No. 1
(See
ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION .)
(See
ENGINE COOLANT TEMPERATURE (ECT) SENSOR INSPECTION .) |
| 5 |
Exhaust CMP sensor
(See
CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION .)
(See
CAMSHAFT POSITION (CMP) SENSOR INSPECTION .) |
| 6 |
MAF sensor/IAT sensor No. 1
(See
MASS AIR FLOW (MAF) SENSOR/INTAKE AIR TEMPERATURE (IAT) SENSOR NO. 1 REMOVAL/INSTALLATION .)
(See
MASS AIR FLOW (MAF) SENSOR INSPECTION .)
(See
INTAKE AIR TEMPERATURE (IAT) SENSOR INSPECTION .) |
| 7 |
PCM (BARO sensor)
(See
PCM REMOVAL/INSTALLATION .)
(See
PCM INSPECTION .)
(See
PCM CONFIGURATION (USING READ/WRITE FUNCTION) .)
(See
PCM CONFIGURATION (USING AS-BUILT DATA) .)
(See
BAROMETRIC PRESSURE (BARO) SENSOR REMOVAL/INSTALLATION .)
(See
BAROMETRIC PRESSURE (BARO) SENSOR INSPECTION .) |
| 8 |
Current sensor (with i-ELOOP)
(See
CURRENT SENSOR REMOVAL/INSTALLATION )
(See
CURRENT SENSOR INSPECTION ) |
| 9 |
Fuel pressure sensor
(See
FUEL PRESSURE SENSOR REMOVAL/INSTALLATION .)
(See
FUEL TANK PRESSURE SENSOR INSPECTION .) |
| 10 |
KS
(See
KNOCK SENSOR (KS) REMOVAL/INSTALLATION .)
(See
KNOCK SENSOR (KS) INSPECTION .) |
| 11 |
MAP sensor/IAT sensor No. 2
(See
MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR/INTAKE AIR TEMPERATURE (IAT) SENSOR NO. 2 REMOVAL/INSTALLATION .)
(See
MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR INSPECTION .)
(See
INTAKE AIR TEMPERATURE (IAT) SENSOR INSPECTION .) |
| 12 |
TP sensor
(See
THROTTLE POSITION (TP) SENSOR REMOVAL/INSTALLATION .)
(See
THROTTLE POSITION (TP) SENSOR INSPECTION .) |
| 13 |
Neutral switch (MTX)
(See
NEUTRAL SWITCH INSPECTION .) |
