ECT Sensor No. 1: Specification

ECT (°C {°F}) Resistance (Kilohms)
20 {68} Approx. 2.45
80 {176} Approx. 0.318

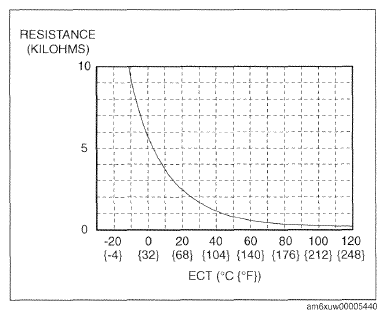

Fig 1: ECT Resistance Characteristics Curve
G09785524Courtesy of MAZDA MOTORS CORP.
