Hose Connection Note

  1. Align the white marks on the hose with the white marks on the pipe and connect them.

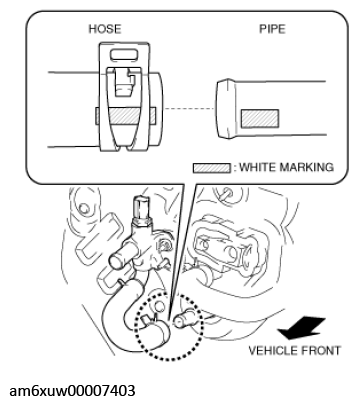

Fig 1: Aligning White Mark
G11546728Courtesy of MAZDA MOTORS CORP.
