Water Pipe Installation Note

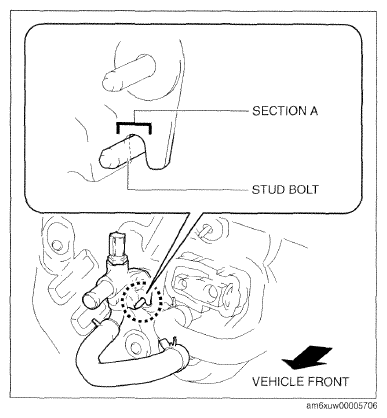

  1. Assemble the water pipe so that the stud bold is inserted between section A.
Fig 1: Assembling Water Pipe
G09785522Courtesy of MAZDA MOTORS CORP.
