IAT Sensor No. 1: Specification

IAT (°C {°F}) Resistance (Kilohms)
-20 {-4} 13.7-16.6
20 {68} 2.49-2.79
60 {140} 0.622-0.703

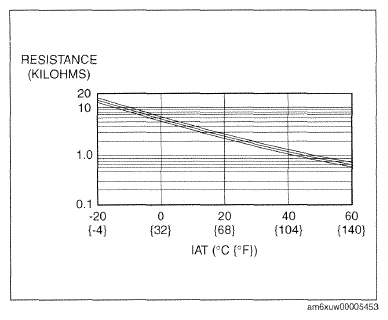

Fig 1: Resistance Characteristic Graph
G09785531Courtesy of MAZDA MOTORS CORP.
