PCM Assembly Installation Note

  1. Install the PCM assembly shown in the figure.

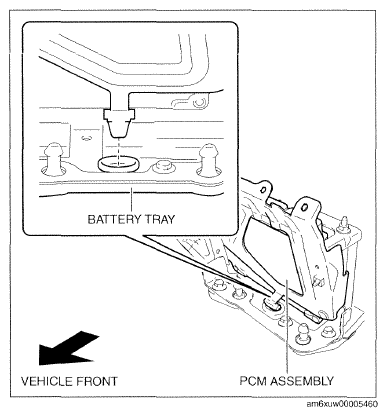

Fig 1: Installing PCM Assembly
G09785480Courtesy of MAZDA MOTORS CORP.
