Dust Cover Removal Note

  1. Remove the rear mudguard (LH). (See MUDGUARD REMOVAL/INSTALLATION .)
  2. Release the dust cover tab using a flathead screwdriver as shown in the figure.

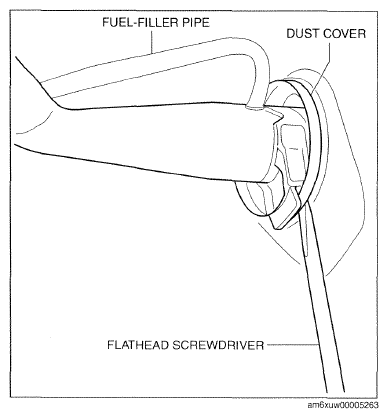

    Fig 1: Releasing Dust Cover Tab Using Flathead Screwdriver
    G09785321Courtesy of MAZDA MOTORS CORP.
  3. Remove the dust cover.
