Joint Hose Installation Note

  1. Install the joint hose as shown in the figure.

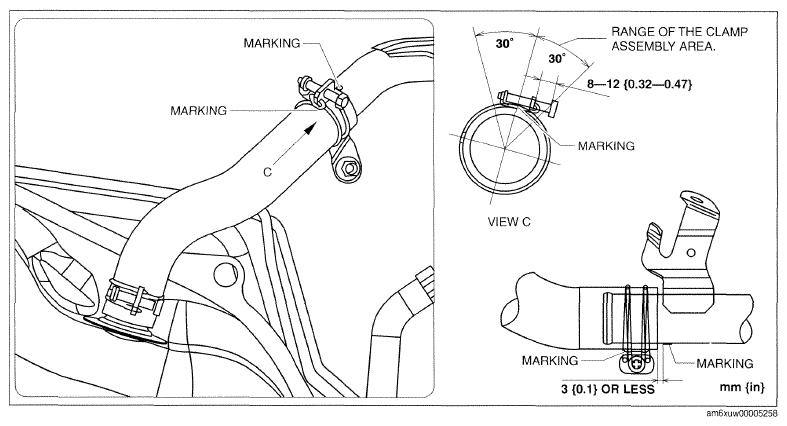

Fig 1: Joint Hose Installation Dimension
G09785322Courtesy of MAZDA MOTORS CORP.
