Ignition Coil/Ion Sensor Removal/Installation

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.5] .)
Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.
Install in the reverse order of removal.

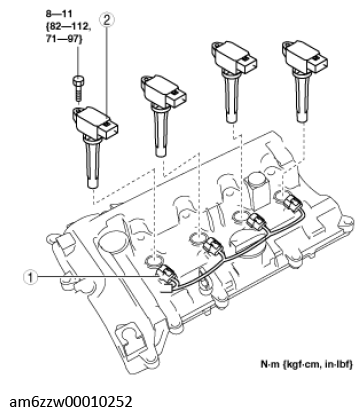

Fig 1: Removing/Installing Ignition Coil/Ion Sensor (Skyactiv-G 2.5)
Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 Connector

2 Ignition coil/ion sensor

1	Connector
2	Ignition coil/ion sensor
