Drive Selection Switch Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.5] .)
  2. Remove the upper panel. (See UPPER PANEL REMOVAL/INSTALLATION .)
  3. Remove the console side panel. (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
  4. Remove the selector lever knob. (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
  5. Remove the shift panel. (See SHIFT PANEL REMOVAL/INSTALLATION .)
  6. Turn over the removed shift panel and remove the boots from the securing parts shown in the figure.

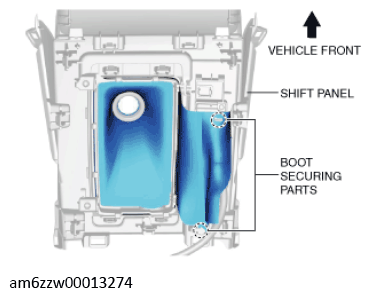

    Fig 1: Removing Boots From Securing Parts
    G11546825Courtesy of MAZDA MOTORS CORP.
  7. Remove in the order indicated in the table.
  8. Install in the reverse order of removal.

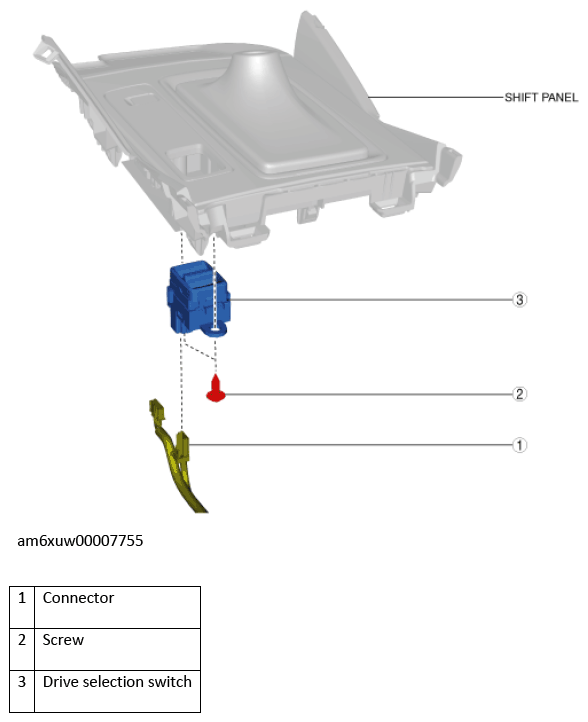

Fig 2: Removing And Installing Drive Selection Switch
G11546826Courtesy of MAZDA MOTORS CORP.
