Drive Selection Switch Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the console side panel. (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
  3. Remove the switch panel. (See SWITCH PANEL REMOVAL/INSTALLATION .)
  4. Remove the selector lever knob. (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION .)
  5. Remove the shift panel. (See SHIFT PANEL REMOVAL/INSTALLATION .)

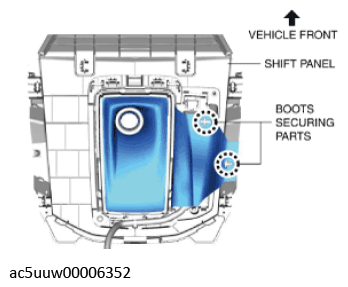

  6. Turn over the removed shift panel and remove the boots from the boots securing parts shown in the figure.
    Fig 1: Boots Securing Parts
    G11429399Courtesy of MAZDA MOTORS CORP.

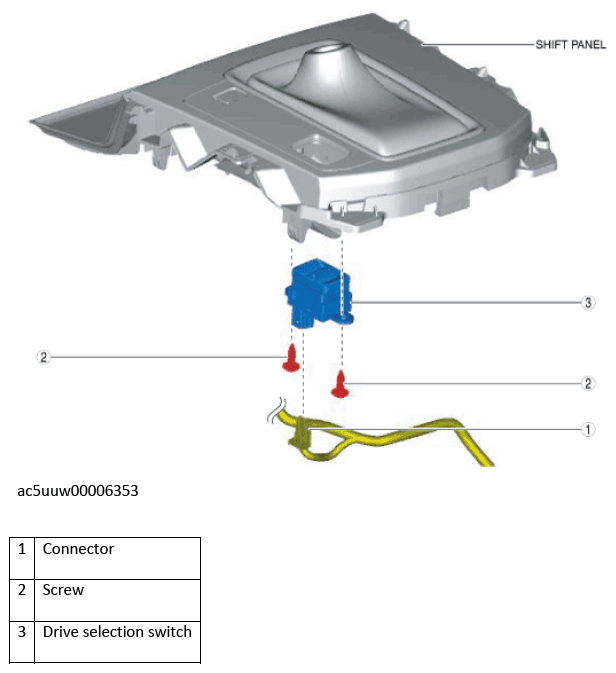

  7. Remove in the order indicated in the table.
  8. Install in the reverse order of removal.
    Fig 2: Installing Drive Selection Switch With Screws
    G11429400Courtesy of MAZDA MOTORS CORP.
