Control System Wiring Diagram

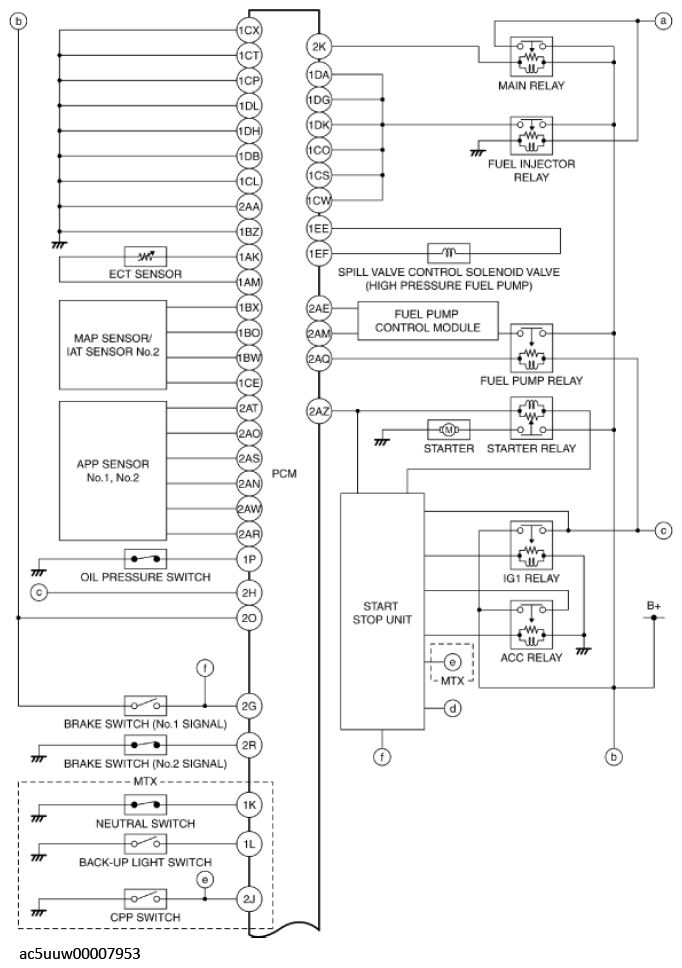

Fig 1: Control System Circuit Diagram (1 Of 3)
G11427361Courtesy of MAZDA MOTORS CORP.

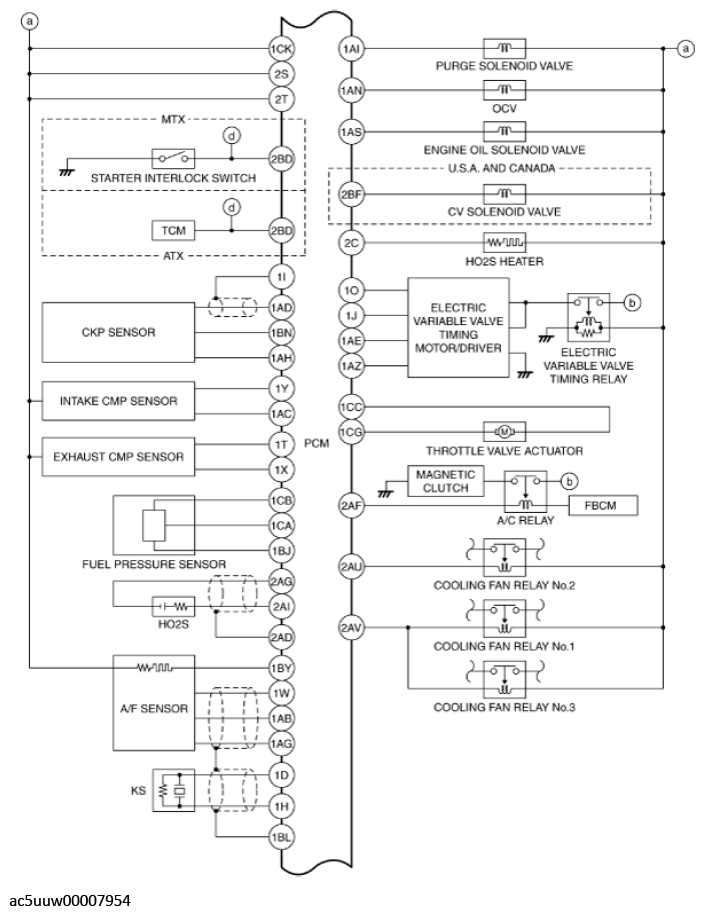

Fig 2: Control System Circuit Diagram (2 Of 3)
G11427362Courtesy of MAZDA MOTORS CORP.

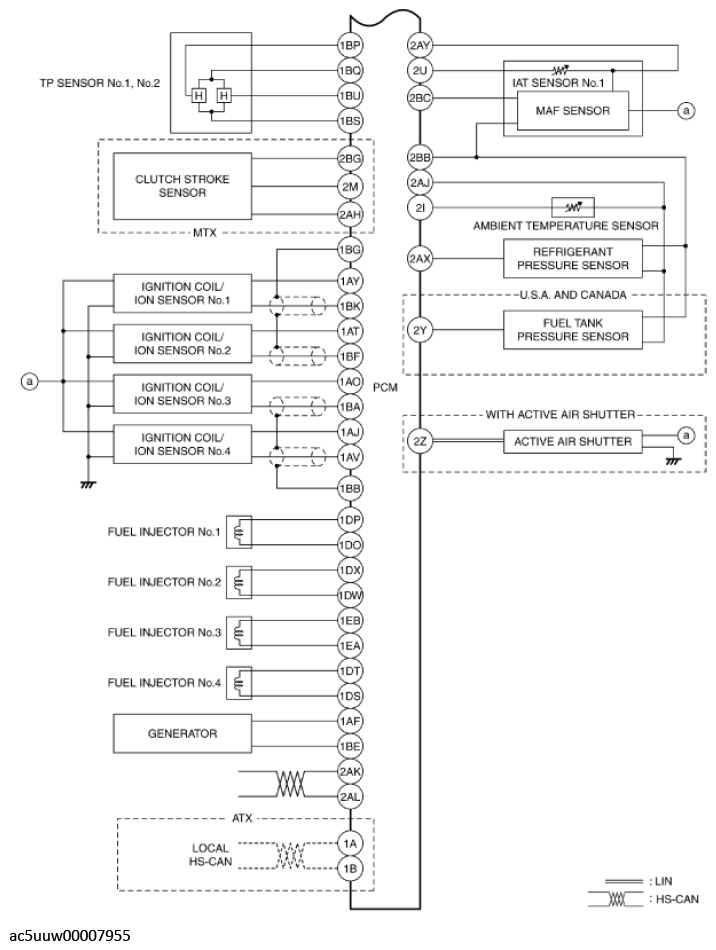

Fig 3: Control System Circuit Diagram (3 Of 3)
G11427363Courtesy of MAZDA MOTORS CORP.
