Power Outer Mirror Removal/Installation: Notes
- Fully close the front door glass.
NOTE:
- The procedure for routing the wiring harness of the power outer mirror to the backside of the glass guide can be performed smoothly by fully closing the front door glass.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION
.)
- Remove front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION
.)
- Remove front door speaker. (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION
.)

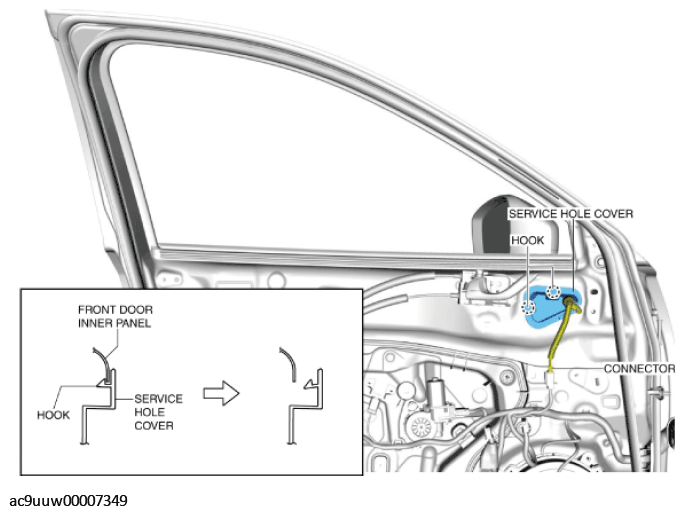

- Disconnect the connector.
Courtesy of MAZDA MOTORS CORP.
- Insert your hand through the front door speaker installation hole and remove the hooks.
- Remove the bolts.
Courtesy of MAZDA MOTORS CORP.
- Detach the clip.
CAUTION:
- If clip of the power outer mirror is detached, the power outer mirror may fall off and be damaged. When detaching clip of the power outer mirror, hold the power outer mirror by hand during the servicing.
Courtesy of MAZDA MOTORS CORP.
- Remove the power outer mirror in the direction of arrow shown in the figure.
Courtesy of MAZDA MOTORS CORP.
- Install in the reverse order of removal. (See POWER OUTER MIRROR INSTALLATION NOTE .) (See CLIP REPLACEMENT NOTE .)
