Sensor Cover Removal/Installation

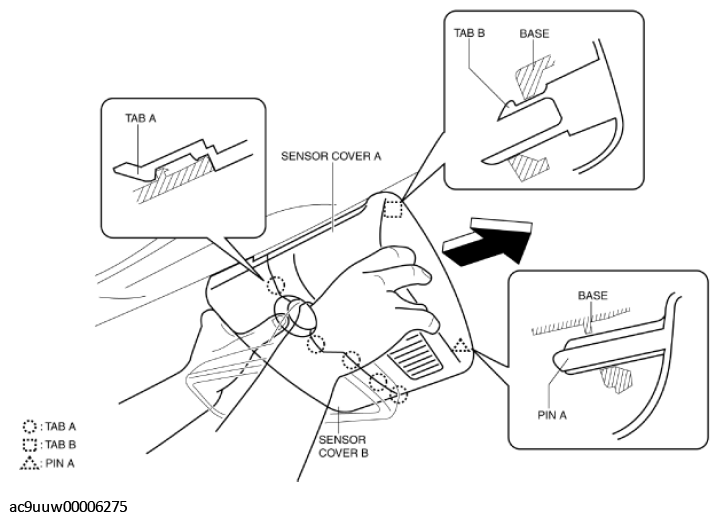

- Pull cover A in the direction of the arrow shown in the figure and detach tab A of cover A and cover B.
Courtesy of MAZDA MOTORS CORP.
- Pull cover A in the direction of the arrow shown in the figure, detach the tab B and pin A for cover A and the base, and remove cover A from the base.

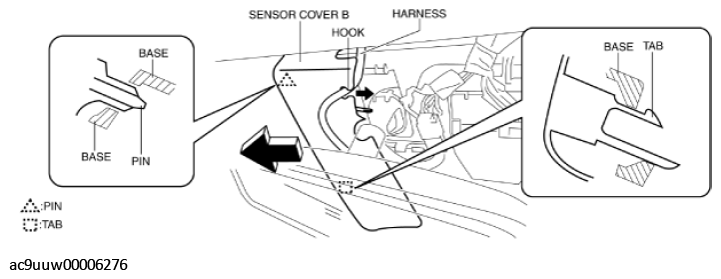

- Remove the wiring harness from the hook.
Courtesy of MAZDA MOTORS CORP.
- Pull cover B in the direction of the arrow shown in the figure, detach the tab and pin for cover B and the base, and remove cover B from the base.
- Install in the reverse order of removal.
