Switch Inspection
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the TCS OFF switch. (See TCS OFF SWITCH REMOVAL/INSTALLATION .)

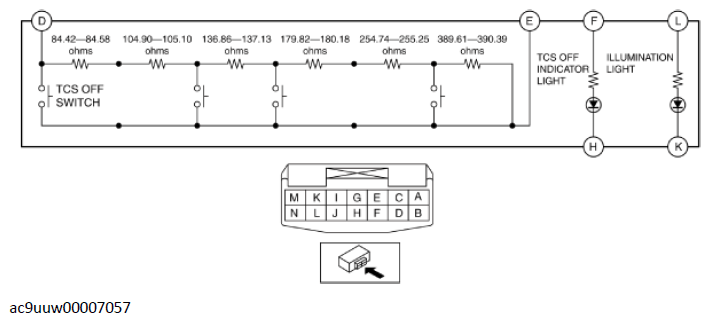

- Verify that the resistance between the TCS OFF switch terminals D and E is as indicated in the table.
- If not as indicated in the table, replace the TCS OFF switch.
TCS OFF switch specification
| Terminal | Test condition | Resistance (ohms) |
|---|---|---|
| D-E | TCS OFF switch pressed | 0 |
| TCS OFF switch released | 1150.35-1152.63 |
