Battery Box Installation Note

Install the battery box so that the side with the larger notch is pointed at the engine.

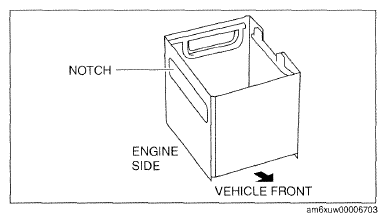

Fig 1: Larger Notch Pointed At Engine Side On Battery Box

Courtesy of MAZDA MOTORS CORP.
