Battery Clamp Installation Note

  1. Install the battery clamp as shown in the figure.

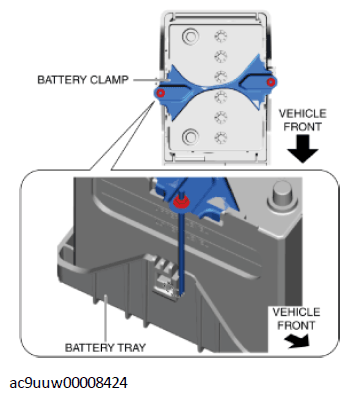

Fig 1: Battery Tray And Battery Clamp
G11436014Courtesy of MAZDA MOTORS CORP.
