Bolt Installation Note

After tightening the three bolts shown in the figure, tighten the first tightened bolt to the specified tightening torque again.

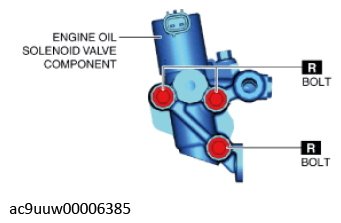

Fig 1: Engine Oil Solenoid Valve Component Bolts
Courtesy of MAZDA MOTORS CORP.
NOTE:
- The tightening order for the three bolts is optional.
Tightening torque

12-16 N.m {123-163 kgf.cm, 107-141 in.lbf}
Install the wiring harness clips and connector shown in the figure.

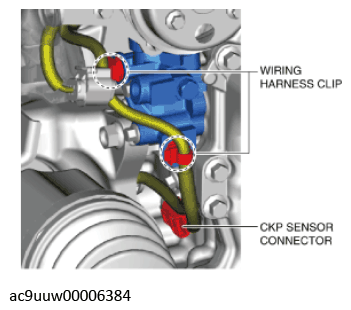

Fig 2: Wiring Harness Clips And CKP Sensor Connector
Courtesy of MAZDA MOTORS CORP.
Tighten the bolts shown in the figure.

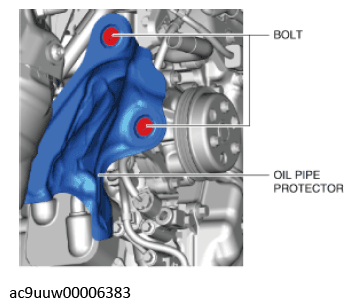

Fig 3: Oil Pipe Protector And Bolts
Courtesy of MAZDA MOTORS CORP.

Tightening torque

8-11 N.m {82-112 kgf.cm, 71-97 in.lbf}
