Control System Wiring Diagram

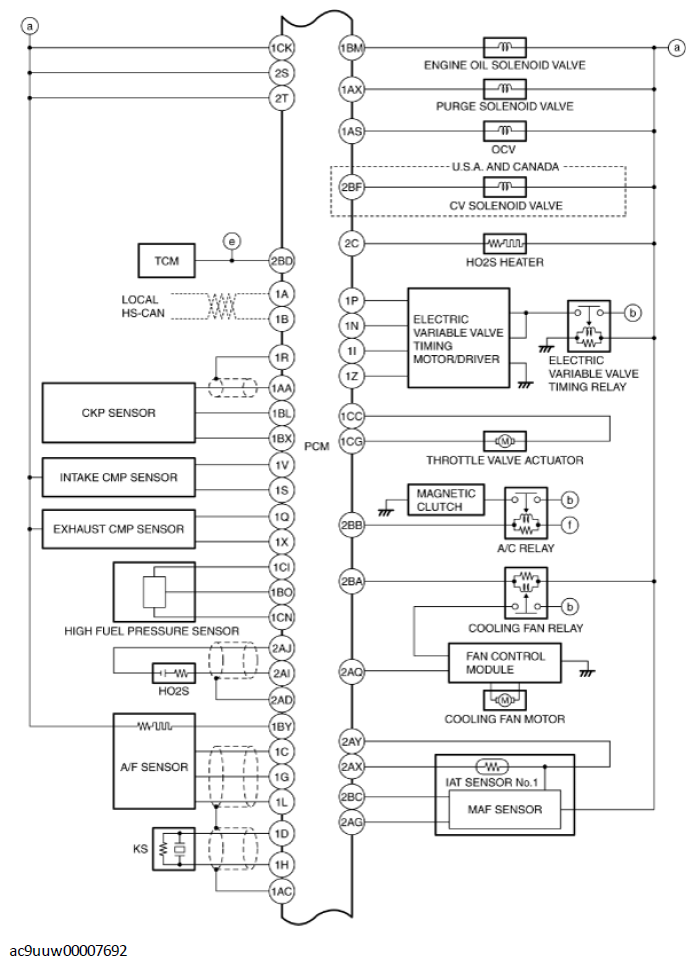

Fig 1: Control System Wiring Diagram (1 Of 4)
Courtesy of MAZDA MOTORS CORP.

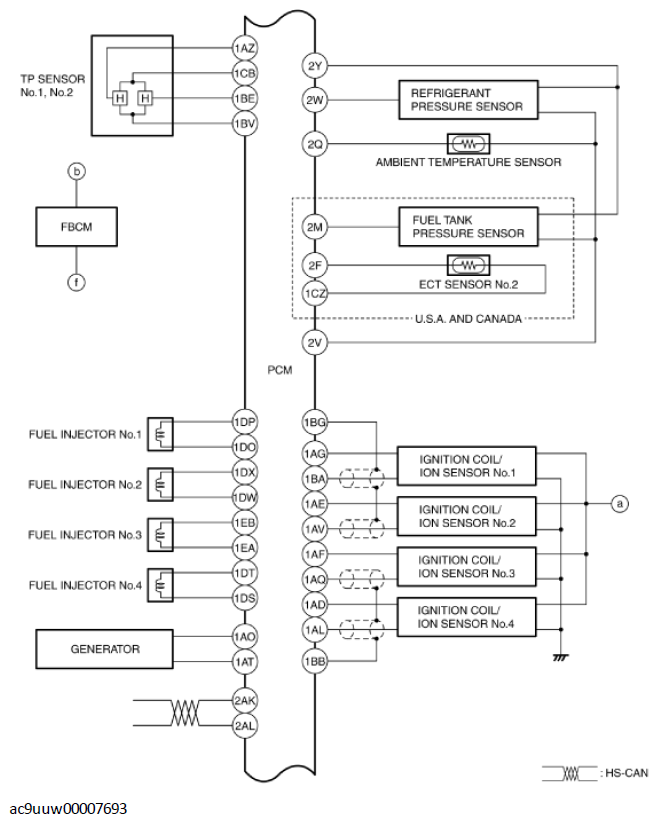

Fig 2: Control System Wiring Diagram (2 Of 4)
Courtesy of MAZDA MOTORS CORP.

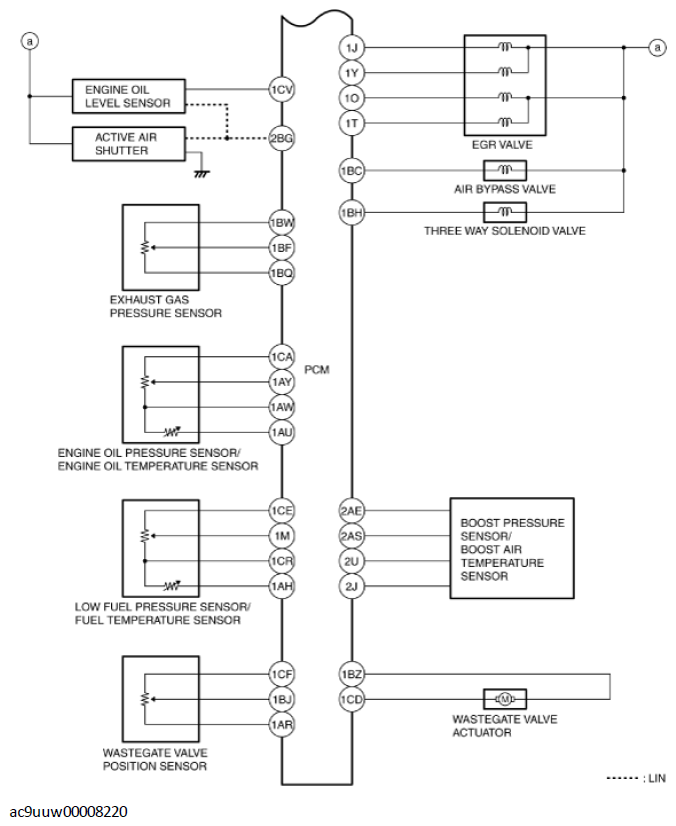

Fig 3: Control System Wiring Diagram (3 Of 4)
Courtesy of MAZDA MOTORS CORP.

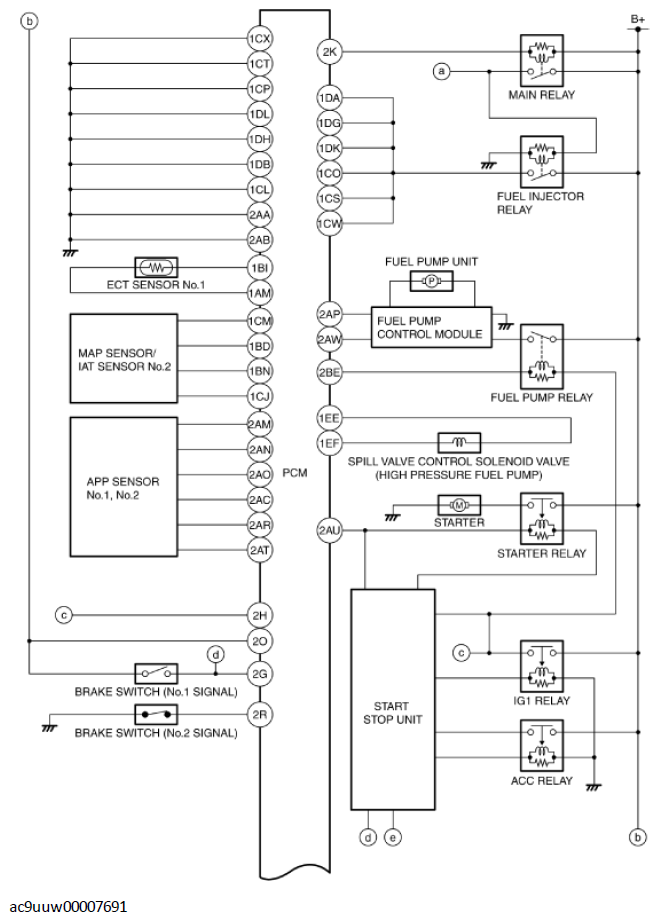

Fig 4: Control System Wiring Diagram (4 Of 4)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
