Resistance Inspection

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
2. Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT .)
3. Remove the ECT sensor No. 1. (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION .)
4. Place the ECT sensor No. 1 in water with a thermometer, and heat the water gradually.

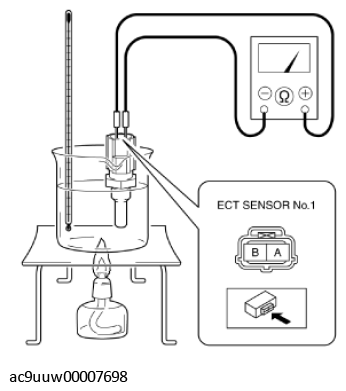

   Fig 1: Measuring Resistance Between ECT Sensor No. 1 Terminals A And B

   Courtesy of MAZDA MOTORS CORP.
5. Measure the resistance between ECT sensor No. 1 terminals A and B.

• If not as specified, replace the ECT sensor No. 1. (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION .)

Specification (Reference)

Fig 2: ECT Sensor No. 1 Temperature Resistance Graph

Courtesy of MAZDA MOTORS CORP.
