KS Installation Note
CAUTION:
- Verify that there is no foreign matter caught between the KS unit and cylinder block as it will cause the sensor to operate incorrectly.

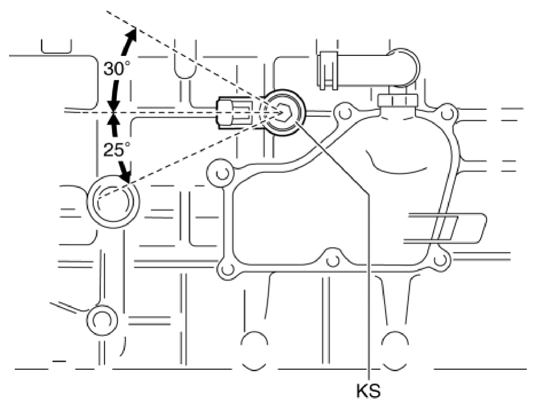

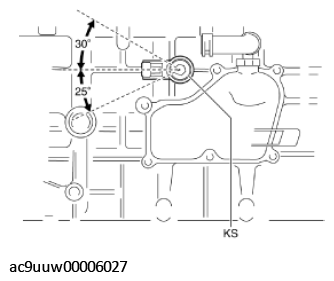

- Install the KS so that the KS connector direction is within the range shown in the figure.
