Fuel Pump Control Module Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the trunk side trim (LH). (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the table.

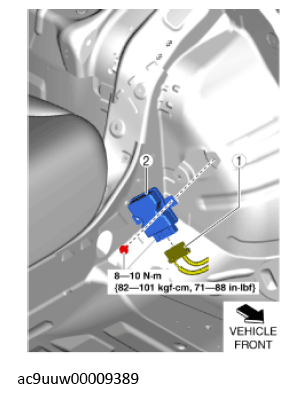

    Fig 1: Removing Fuel Pump Control Module With Connector
    G11436350Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Fuel pump control module connector
    2 Fuel pump control module
  4. Install in the reverse order of removal.
