Control System Wiring Diagram

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

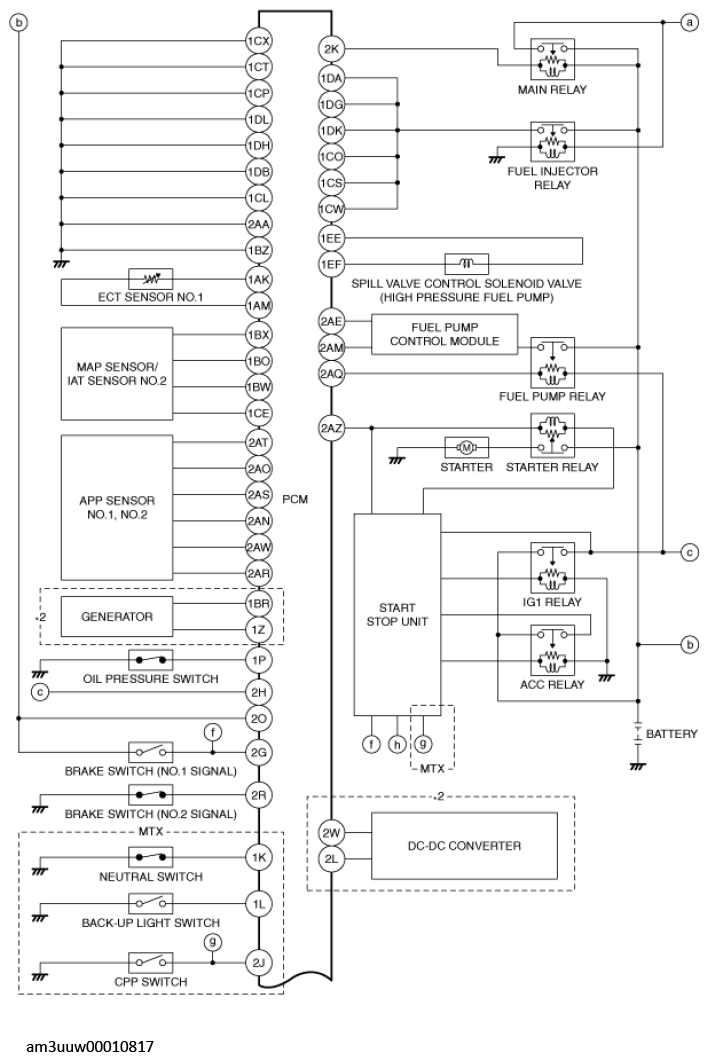

Fig 1: Control System Wiring Diagram - Skyactiv-G 2.0, Skyactiv-G 2.5 (1 Of 3)

Courtesy of MAZDA MOTORS CORP.

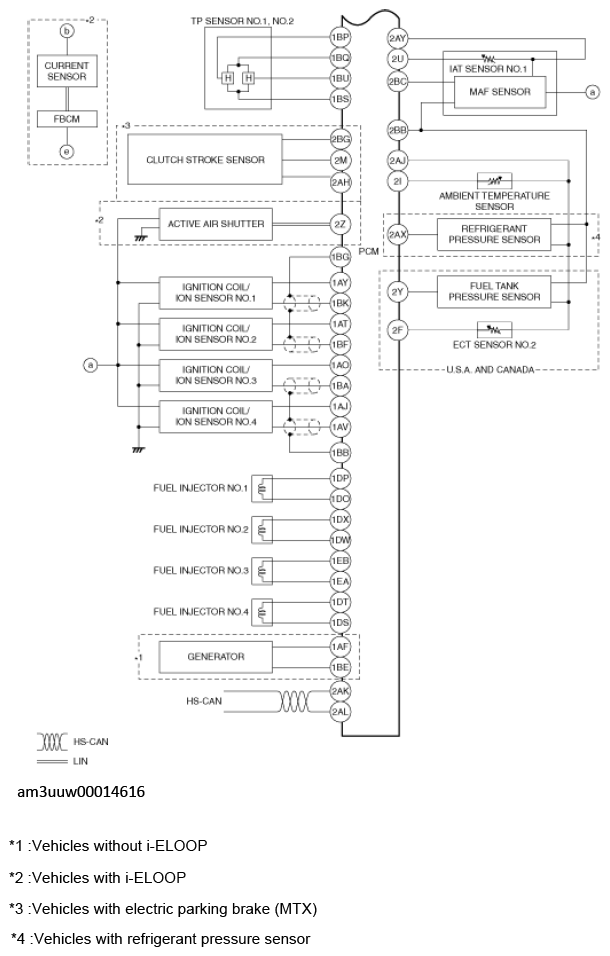

Fig 2: Control System Wiring Diagram - Skyactiv-G 2.0, Skyactiv-G 2.5 (2 Of 3)

Courtesy of MAZDA MOTORS CORP.

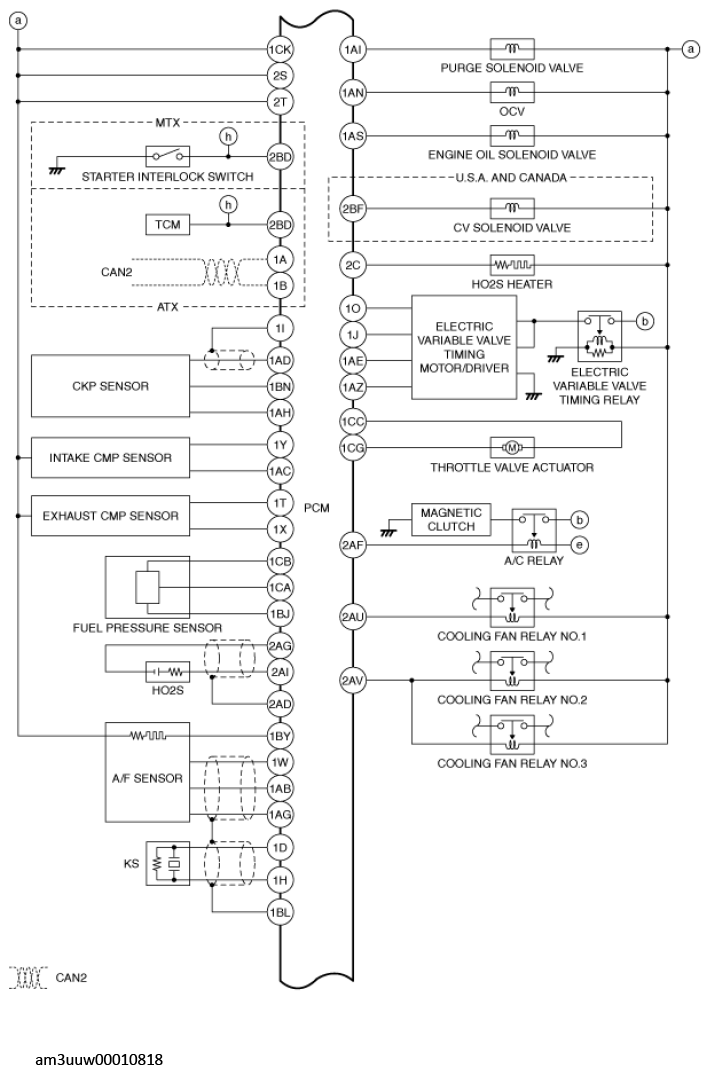

Fig 3: Control System Wiring Diagram - Skyactiv-G 2.0, Skyactiv-G 2.5 (3 Of 3)

Courtesy of MAZDA MOTORS CORP.
