Transfer Removal/Installation: Notes

CAUTION:

Performing the following procedures could cause an open circuit in the front ABS wheel speed sensor wiring harness if it is pulled by mistake. Before servicing, disconnect the front ABS wheel - speed sensor and set it aside so that the wiring harness will not be pulled by mistake.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the propeller shaft. (See PROPELLER SHAFT REMOVAL/INSTALLATION .)
Remove the front crossmember component. (See FRONT CROSSMEMBER REMOVAL/INSTALLATION .)
Remove the front drive shaft (RH). (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION .)
Remove the heat shield.

Fig 1: Heat Shield And Bolt With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove in the order indicated in the table.
Install in the reverse order of removal.
Warm up the engine and transaxle, inspect for oil leakage, and inspect the transfer operation.

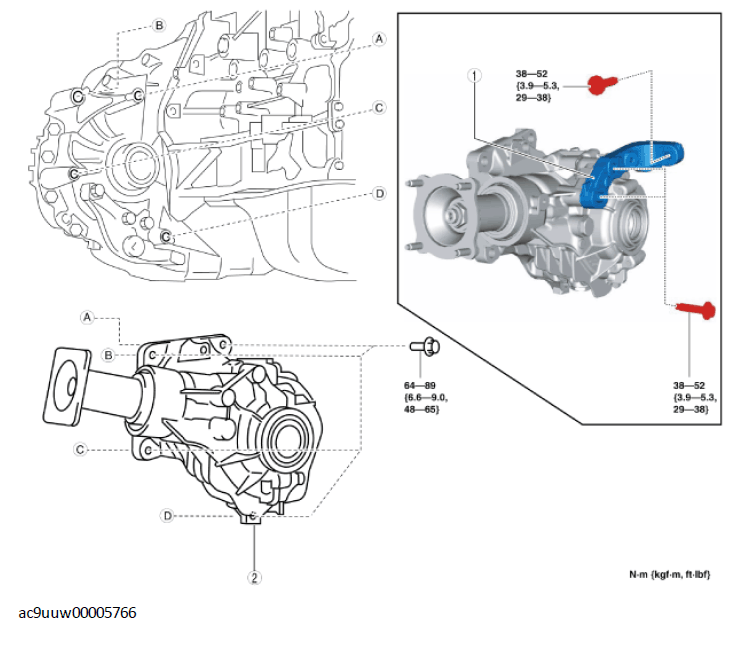

Fig 2: Transfer, Transfer Bracket And Bolts With Torque Specification

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Transfer bracket (See Transfer Bracket Installation Note .)
2	Transfer
